| Product Introduction

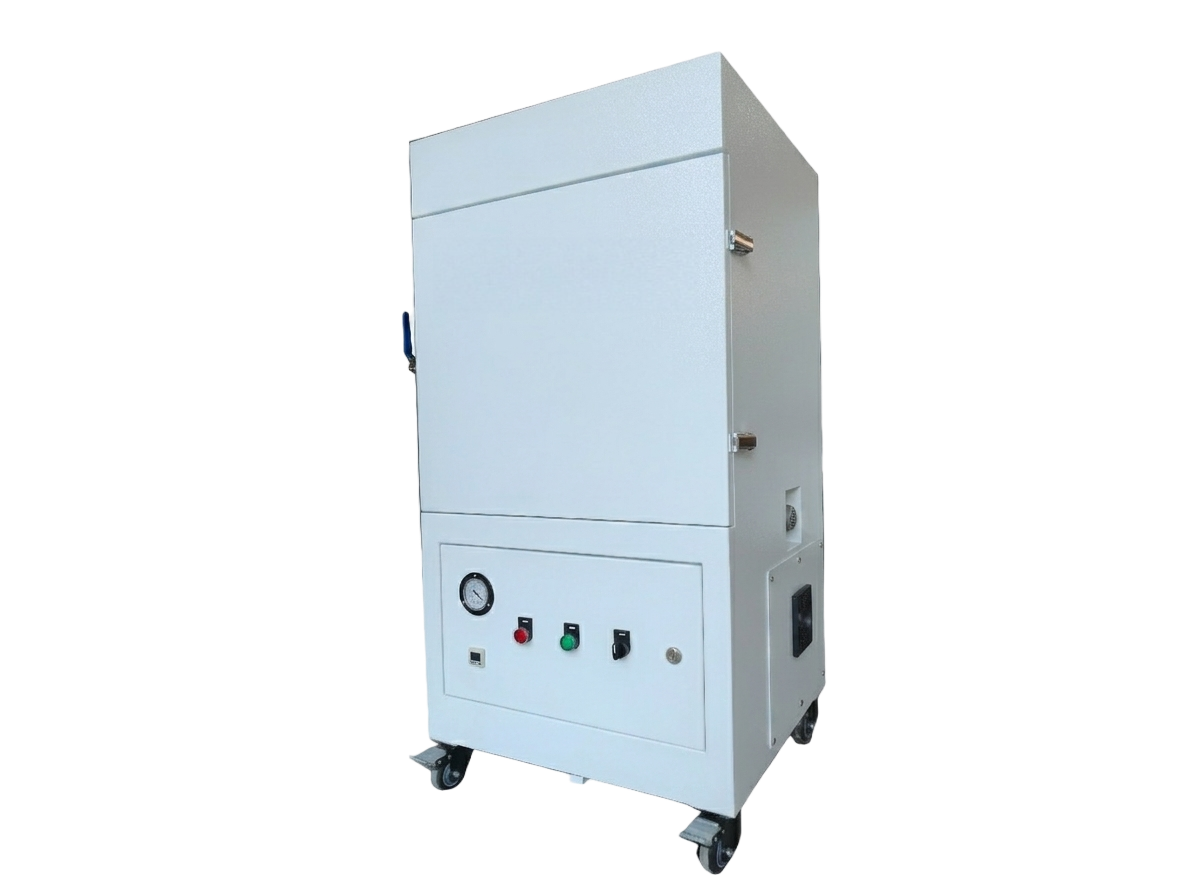

SX cabinet dust collector series is a multi-stage filter industrial vacuum cleaner developed by our company in combination with environmental protection emission requirements. It has the characteristics of large suction, stability and reliability, small overall size, and flexible movement. This machine can be applied to static, settling dust collection and treatment; suitable for plate processing, circuit board processing, Laser Cutting, laser welding, dust collection, can also be used with production equipment.

| Advantages and Features

the working principle of SX cabinet dust collector series products is that after dust is collected into the vacuum cleaner through the suction port, dust-containing air enters the primary filter from the air inlet flow equalizer of the vacuum cleaner, and is filtered through the negative pressure of the primary filter. Dust particles with a particle size greater than 1μm are filtered by the primary filter with a filtering effect of 99% when the airflow passes through the filter cartridge, and are trapped on the inner surface of the primary filter, dust particles with particle sizes less than 1μm and greater than 0.3μm reach the secondary filter unit under the action of airflow and are filtered by the secondary filter unit with a filtering effect of up to 99%. If the dust particles are trapped on the surface of the secondary filter unit, the purified gas enters the clean air chamber and is discharged after being filtered by the secondary filter device. The electric control components of SX cabinet dust collector series mainly adopt Schneider control components of international brand. Overload and phase sequence protection functions are provided in the circuit. Low voltage 24V control circuit can better protect the life safety of operators and ensure the stable operation of equipment. Emergency stop and local remote switching control functions are designed. The driving unit adopts a high-efficiency turbine fan, which has the advantages of stable wind pressure, large air volume, low noise, etc. It can meet the requirements of continuous operation. The industrial vacuum cleaner adopts two-stage filtration. The first-stage filtration unit adopts F8 bag folding plate and frame filter (filtration accuracy is 1μm), the second-stage filtration unit adopts plate and frame high-efficiency filter (accuracy is 0.3 μm), and more precision customization is up to 0.1 μm. SX cabinet dust collector series industrial vacuum cleaners have a power of 3.7w/5.5w, which can mostly meet customers' power requirements for industrial dust collection. And the product is designed with a pressure relief valve unit, which can better protect the fan unit. The pressure relief valve is an adjustable unit, which can be adjusted according to actual production needs.
